LY-HB2500CK High Speed 35-45pcs/min Intelligent Rigid Box Making Machine For Makeup / Jewellery / Wine Boxes Making

LY-HB2500CK High Speed 35-45pcs/min Intelligent Rigid Box Making Machine For Makeup / Jewellery / Wine Boxes Making

paper box manufacturing machine

industrial box making machine

35pcs/min Rigid Box Making Machine

Place of Origin:

China

Brand Name:

Lishunyuan

Certification:

CE

Model Number:

LY-HB2500CK

Contact Us
Request A Quote
Product Details
Machine Type:
Rigid Box Forming Machine
Condition:
New
Automation:
Full-automatic
Warranty:
1 Year
Weight:
7500kg
Production Speed:
45pcs/min
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Local Service Location:
South Korea, India, Turkey, Vietnam, Malaysia
Highlight:

paper box manufacturing machine

,

industrial box making machine

,

35pcs/min Rigid Box Making Machine

Payment & Shipping Terms
Minimum Order Quantity
1 Set
Price
Negotiate
Packaging Details
Film and Plywood crates
Delivery Time
25 days
Payment Terms
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability
20 sets per month
Product Description

Intelligent Rigid Box Making Machine Suitable For The Rigid Boxes Like Smartphone Boxes



LY-HB2500CK Rigid Box Making Machine.pdf



Description

         The Features of LY-HB2500CK: Automation, Infprmationization, intelligentization&IOT fuctions(Real-time monitoring of facility’s running state, parameters and the consupmtion of gas and power). Suitable for the production of rigid boxes like smartphone boxes, makeup boxes, jewery boxes and wine boxes.



LY-HB2500CK High Speed 35-45pcs/min Intelligent Rigid Box Making Machine For Makeup / Jewellery / Wine Boxes Making 0
Features

1. The World’s shortest Change-over-time, thereby saving precious machine time
2. Uses highly accurate Visual Robot arm positioning with German multiple camera system
3. Dual Forming stations for high output
4. Includes in-line Bubble pressing module
5. Production speed:35- 45pcs/min
6. Positioning accuracy ±0.1 mm
7. Fast for job changeover with memory function, Changeover time (job transfer time) of less than 10 Minutes
8. Suitable for mobile phone box, cosmetics box, jewelry box, wine box cover and other boxes…
9. Don’t need to change the blade and pressing board.

10. Easy operation , fast and convenience.


Para​meters



Paper Size W:95 - 600mm
  L: 120-880mm
Paper thickness 80-300g/m2
Max.paper stacking height 800mm
Cardboard thickness 1-3mm
Finished box size W*L*H L:45-350mm
W:45-250mm
H:15-120mm
Ear overlapping size 15-120mm
Folding size 7-100mm
Production speed 35-45pcs/min
Setting time 10-15mins
Precision ±0.1mm
Power Supply 380V/50Hz
Max power 37kw
Max power(with bubble pressing machine) 43kw
Air pressure 0.5-0.7mpa/320NL/min
Glue tank volume 30kg
Machine weight 7500kg
Machine weight (with bubble pressing machine) 9100kg
Machine size L8000*W4000*H3300mm
Machine size (with bubble pressing machine) L11600*W4000*3300mm

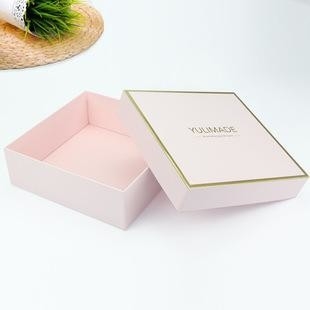

Sample Boxes

LY-HB2500CK High Speed 35-45pcs/min Intelligent Rigid Box Making Machine For Makeup / Jewellery / Wine Boxes Making 1

Company Introduction


       LiShunyuan was founded in 2001, located in Dongguan city, Guangdong Province Daojiao town Nanya Industrial zone, and has a modern standard workshops of 20000 square meters, after 20 years of development, the company in domestic has formed a complete sales network and after-sales service system, product sales network and after-sales service system, product sales throughout the whole of China, exported to Europe and the united states, Southeast Asia, South America, Middle East, Africa and so on more than 40 countries and Regions.

       Innovation is the core competitiveness of Lishunyuan. The company owns independent intellectual property products including rigid box series, clamshell box series,widely used in the production of gift boxes, mobile phone boxes, cosmetic boxes, liquor & wine boxes , and other boutique boxes.
LY-HB2500CK High Speed 35-45pcs/min Intelligent Rigid Box Making Machine For Makeup / Jewellery / Wine Boxes Making 2

Workshop

LY-HB2500CK High Speed 35-45pcs/min Intelligent Rigid Box Making Machine For Makeup / Jewellery / Wine Boxes Making 3



LY-HB2500CK High Speed 35-45pcs/min Intelligent Rigid Box Making Machine For Makeup / Jewellery / Wine Boxes Making 4

Package & Delivery


LY-HB2500CK High Speed 35-45pcs/min Intelligent Rigid Box Making Machine For Makeup / Jewellery / Wine Boxes Making 5



LY-HB2500CK High Speed 35-45pcs/min Intelligent Rigid Box Making Machine For Makeup / Jewellery / Wine Boxes Making 6



LY-HB2500CK High Speed 35-45pcs/min Intelligent Rigid Box Making Machine For Makeup / Jewellery / Wine Boxes Making 7


Certification


LY-HB2500CK High Speed 35-45pcs/min Intelligent Rigid Box Making Machine For Makeup / Jewellery / Wine Boxes Making 8  LY-HB2500CK High Speed 35-45pcs/min Intelligent Rigid Box Making Machine For Makeup / Jewellery / Wine Boxes Making 9     LY-HB2500CK High Speed 35-45pcs/min Intelligent Rigid Box Making Machine For Makeup / Jewellery / Wine Boxes Making 10 LY-HB2500CK High Speed 35-45pcs/min Intelligent Rigid Box Making Machine For Makeup / Jewellery / Wine Boxes Making 11

Trade Show

LY-HB2500CK High Speed 35-45pcs/min Intelligent Rigid Box Making Machine For Makeup / Jewellery / Wine Boxes Making 12



LY-HB2500CK High Speed 35-45pcs/min Intelligent Rigid Box Making Machine For Makeup / Jewellery / Wine Boxes Making 13
